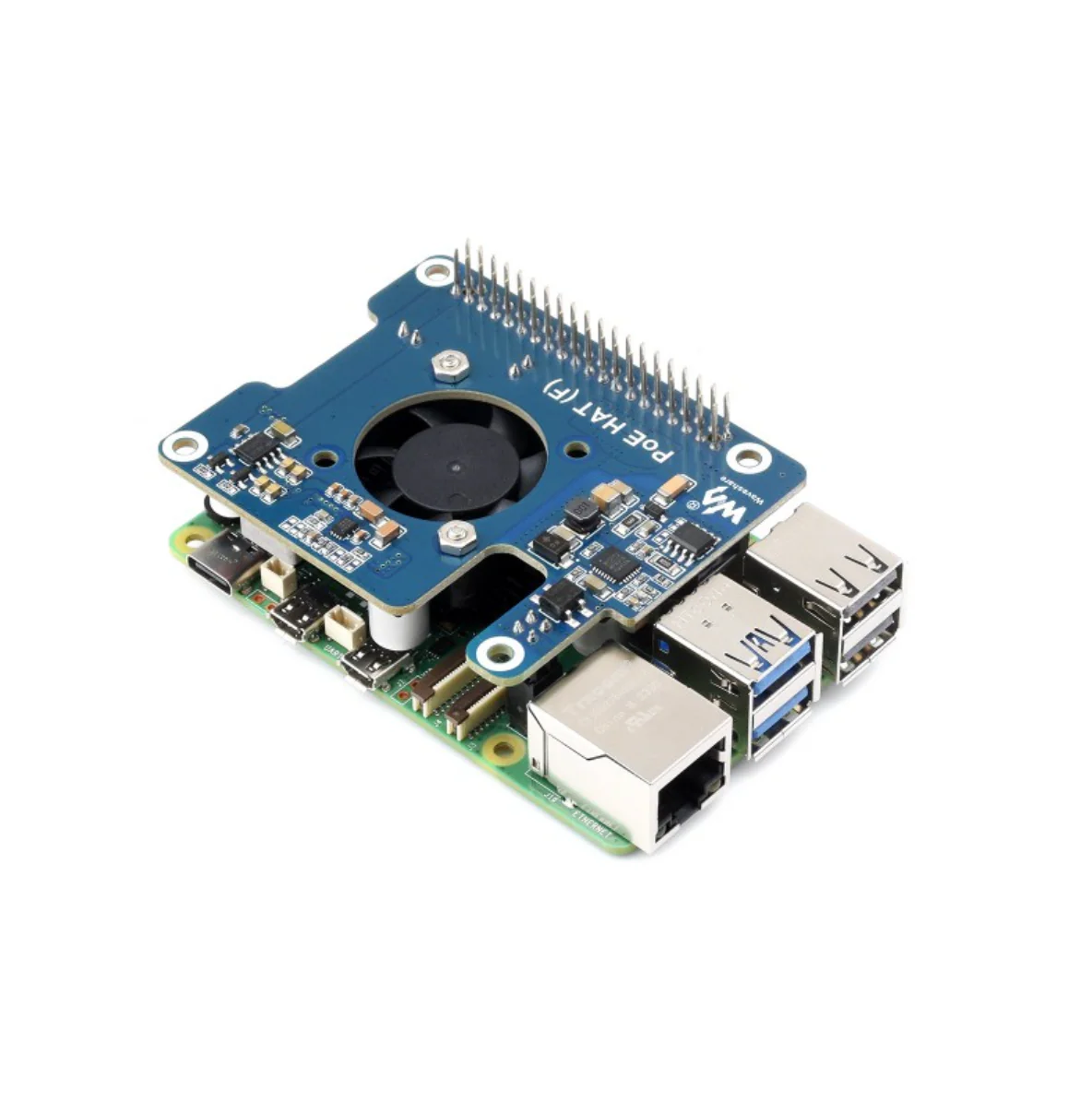

Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard
The PoE HAT (F) brings high-power Power over Ethernet to Raspberry Pi 5. Compliant with IEEE 802.3af/at standards, it delivers both network connectivity and up to 25W of power through a single Ethernet cable – perfect for demanding applications.
Designed specifically for the Pi 5's higher power requirements, this HAT features an active cooling fan with metal heatsink for superior thermal management. Dual power outputs (5V and 12V) let you power additional peripherals alongside your Pi.
Key Features
- 802.3af/at Compliant – Supports both PoE and PoE+ standards
- High Power Output – Up to 5V 4.5A via GPIO, plus 12V 2A header
- Active Cooling – High-speed fan with metal heatsink included
- Isolated SMPS – Fully isolated switched-mode power supply
- Stackable Design – 40-pin GPIO passthrough for additional HATs
- Quality Components – MP8759GD buck chip for stable 5A output
Specifications
- PoE Input: 37V - 57V DC
- 5V Output: Up to 4.5A (via GPIO header)
- 12V Output: Up to 2A (via 2-pin header)
- Total Output Power: 25W maximum (12V + 5V combined)
- Network Standard: IEEE 802.3af/at PoE
- Compatibility: Raspberry Pi 5
- Dimensions: 56.5mm × 70.0mm
Ideal For
- Raspberry Pi 5 deployments requiring high power
- Network appliances and edge computing
- Clean single-cable installations
- Projects needing 12V peripheral power
Resources
- Waveshare Wiki
