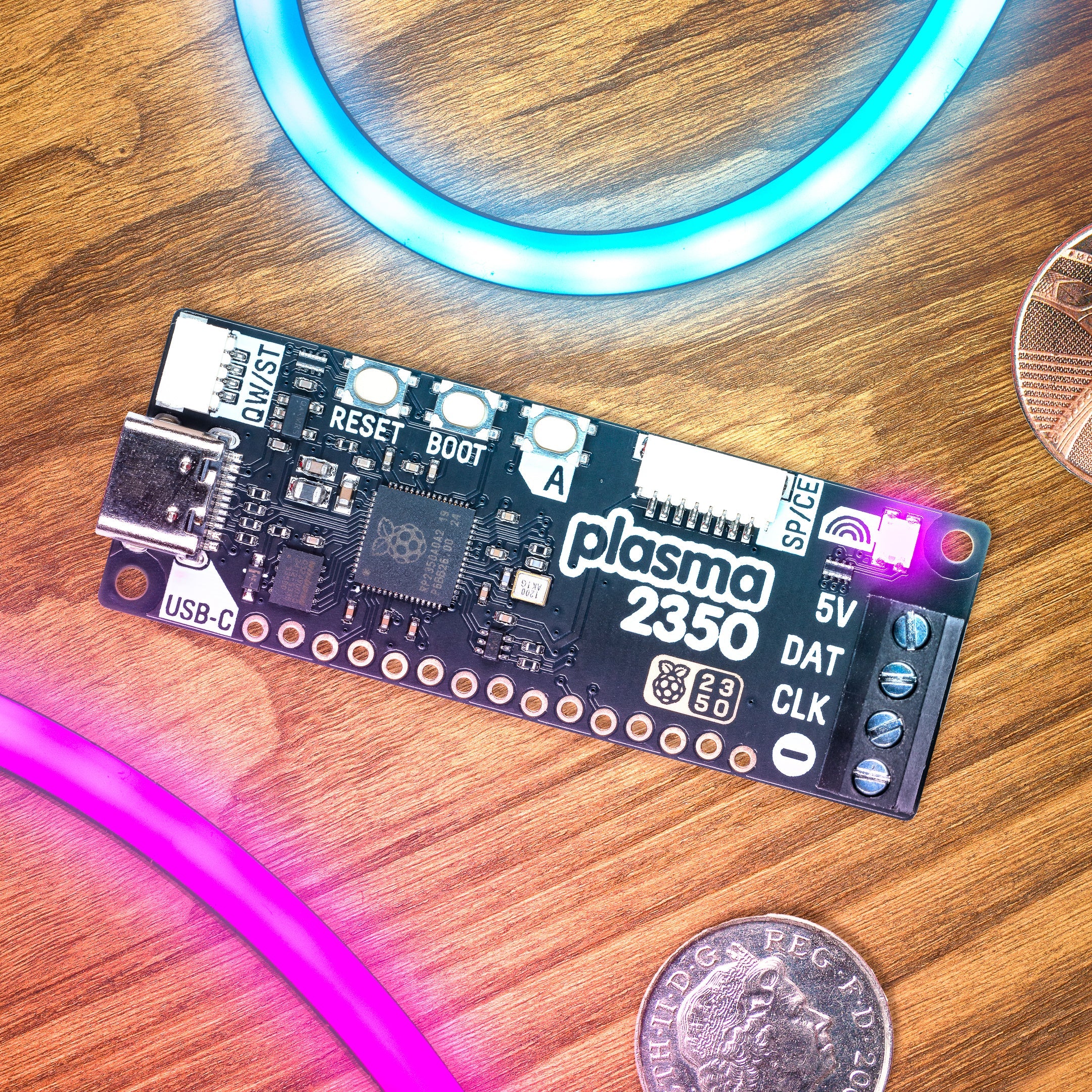

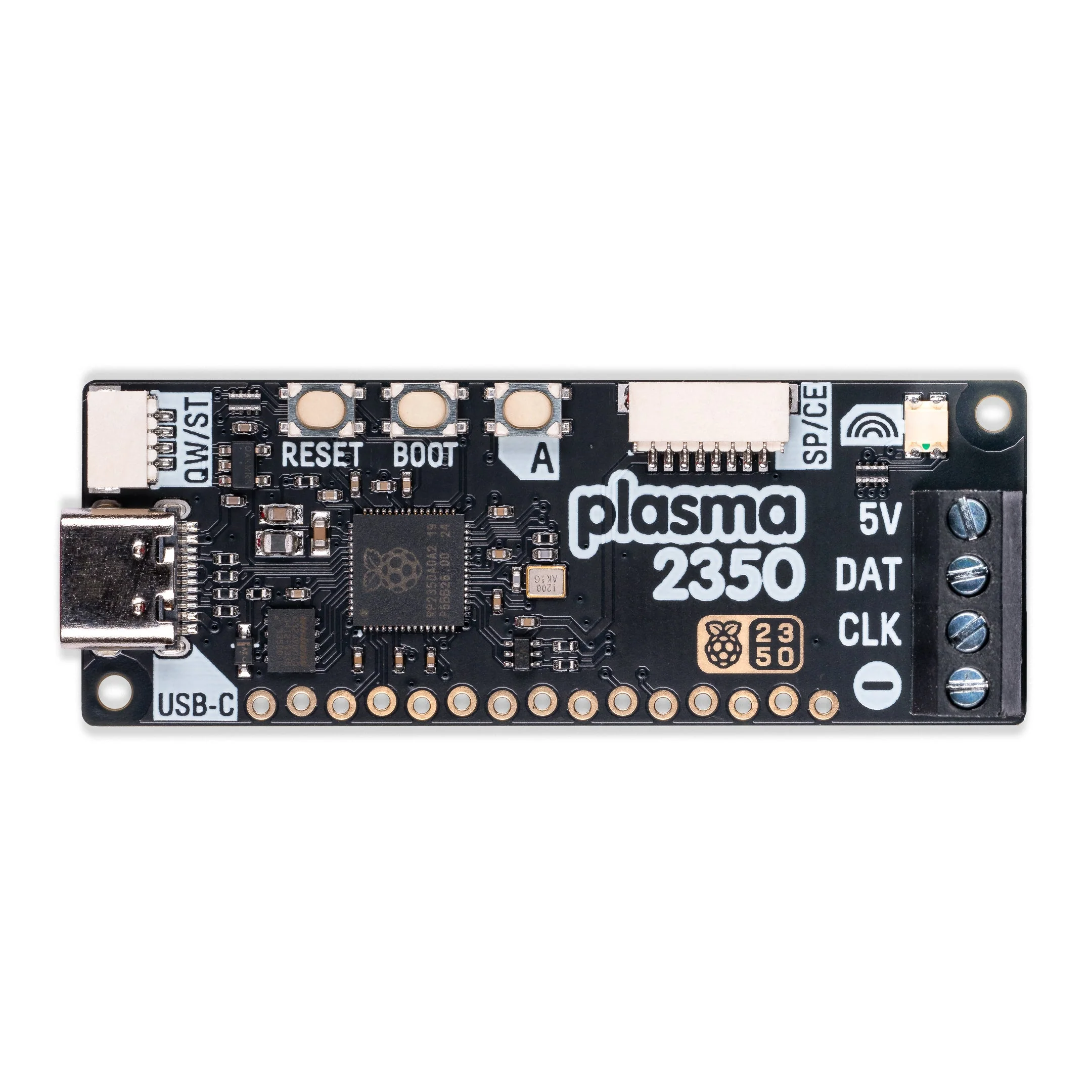

Plasma 2350 is an all-in-one USB-C powered controller for WS2812/Neopixel and APA102/Dotstar addressable LED strips. Powered by the RP2350A microcontroller, it can draw up to 3A via USB-C – enough juice to drive a substantial string of LEDs without a separate power supply.

Fully assembled with screw terminals for easy LED strip connection, plus a QW/ST connector for plugging in Qwiic or STEMMA QT breakouts. Includes a user button for switching effects, an onboard RGB LED, and is programmable with C/C++ or MicroPython.

Key Features

• RP2350A Powered – Dual Arm Cortex M33 at up to 150MHz with 520KB SRAM
• 4MB Flash – QSPI flash with XiP support
• USB-C Power & Programming – Up to 3A for driving LEDs directly
• Screw Terminals – Easy connection for LED strips
• QW/ST Connector – Qwiic/STEMMA QT compatible for I2C breakouts
• User Controls – Dedicated user button plus RGB LED indicator
• Fully Assembled – No soldering required

LED Compatibility

• WS2812 / Neopixel / SK6812 (5V)
• APA102 / Dotstar / SK9822

Specifications

• Microcontroller: RP2350A (Dual Cortex M33, 150MHz)
• Memory: 520KB SRAM, 4MB QSPI Flash
• Power Input: USB-C (up to 3A)
• Connectors: USB-C, QW/ST (Qwiic/STEMMA QT), SP/CE
• Buttons: Reset, BOOT (also usable as user button), User
• Dimensions: 61mm × 22mm × 12mm (approx)

Ideal For

• Addressable LED strip projects
• Decorative lighting installations
• LED art and displays
• Interactive light effects

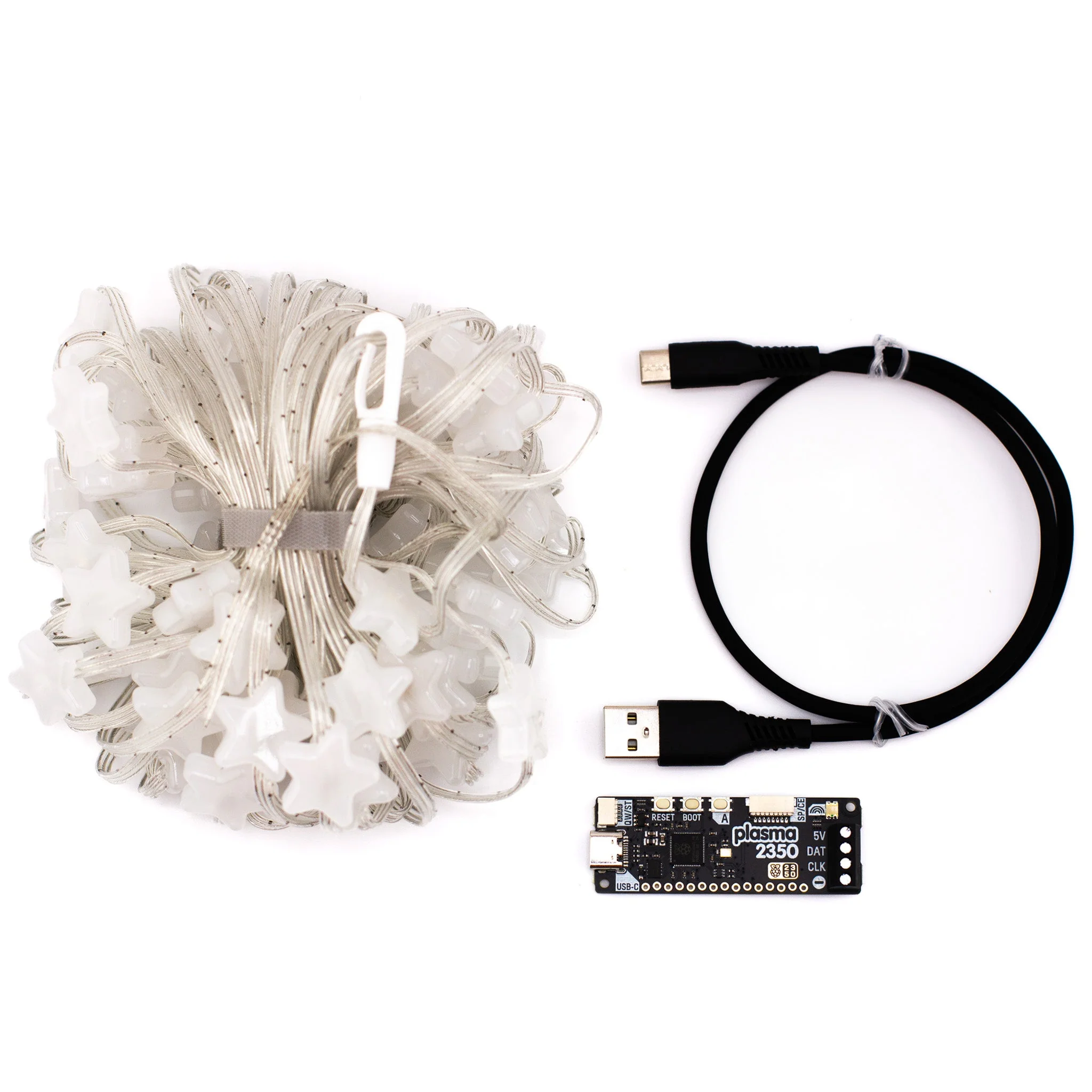

STARter Kit Contents

• 1× Plasma 2350
• 1× USB-C cable
• 1× 10m RGB LED Star Wire

Resources

• Pinout Diagram (PDF)
• RP2350 MicroPython Builds and Examples
