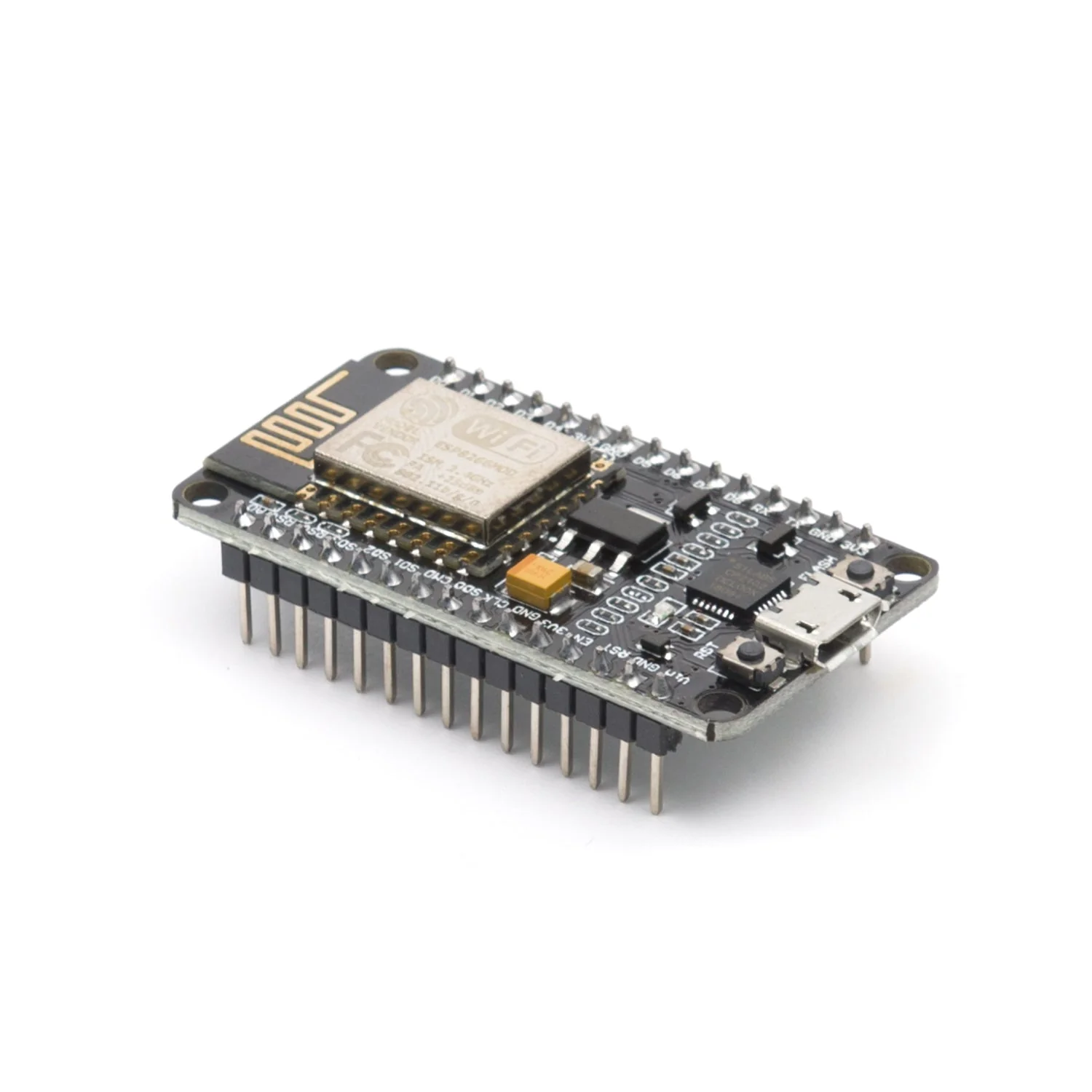

NodeMCU board ESP8266 WiFi module CP2102 ESP-12E Lua WiFi
The NodeMCU is a popular open-source development board featuring the ESP8266 WiFi module (ESP-12E) and a CP2102 USB-to-Serial converter for easy programming and debugging. It's an affordable and versatile platform for building IoT projects with built-in WiFi connectivity.
This board comes pre-loaded with Lua firmware but can be reflashed with Arduino-compatible firmware for use with the Arduino IDE. All GPIO pins are broken out with convenient headers for easy prototyping.
Key Features
- ESP-12E WiFi Module – Built-in 802.11 b/g/n WiFi connectivity
- CP2102 USB-to-Serial – Direct USB programming, no external programmer needed
- All GPIO Accessible – Full access to ESP8266 IO pins via breadboard-friendly headers
- No Reset Required – Auto-program circuit for seamless firmware uploads
- Open-Source – Extensive community support and resources
- Low Power – Standby current under 200µA
Specifications
- Module: ESP-12E (ESP8266)
- USB Chip: CP2102
- Power Input: 4.5V–9V (10V max) via USB or VIN
- Operating Current: ~70mA (200mA max during transmission)
- Standby Current: <200µA
- Operating Temperature: -40°C to +125°C
- Dimensions: 48 × 25 mm
Ideal For
- IoT projects and connected devices
- Home automation systems
- WiFi-enabled sensors and data loggers
- Learning embedded development and Lua/Arduino programming
Package Contents
- 1× NodeMCU ESP8266 CP2102 Development Board
Resources
- CP2102 USB Drivers (Silicon Labs)
- ESP8266 Arduino Core (GitHub)
