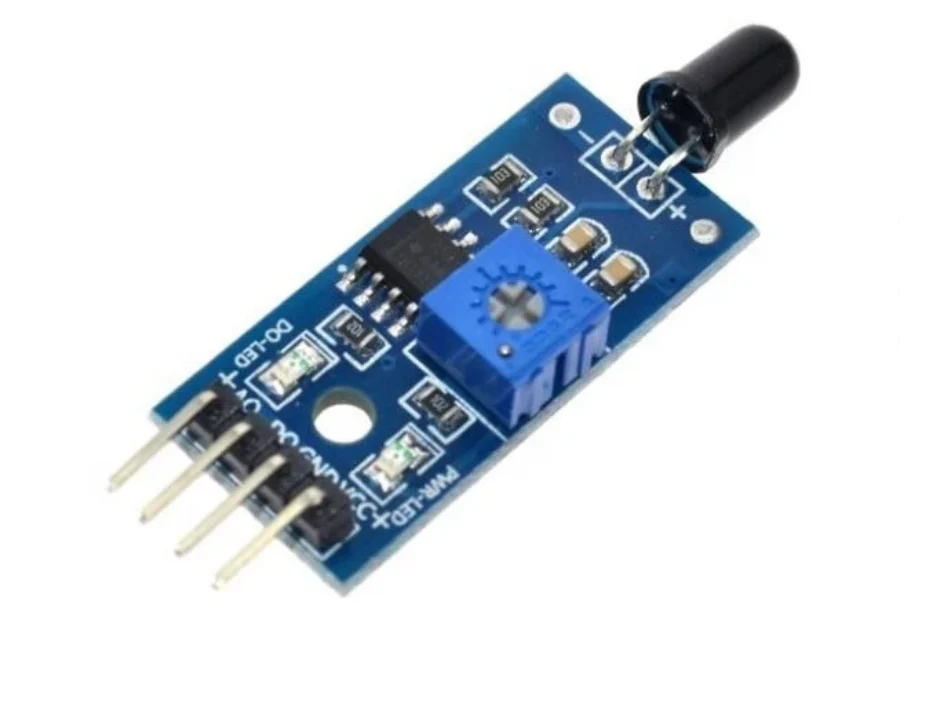

IR Flame Sensor Module
Detect flames and infrared light sources with this compact IR flame sensor module. Sensitive to wavelengths between 760nm and 1100nm, it can detect a lighter flame at distances up to 80cm with a 60-degree detection angle.
Features both digital and analog outputs, with adjustable sensitivity via the onboard potentiometer. Built around the reliable LM393 comparator for clean signal output.
Key Features
- IR Detection – Detects 760nm–1100nm wavelength light sources
- 80cm Range – Detection distance varies with flame size
- 60° Detection Angle – Wide sensing coverage
- Adjustable Sensitivity – Onboard potentiometer for tuning
- Dual Output – Digital (D0) and analog (A0) outputs
- Strong Drive – Over 15mA output capability
- LM393 Comparator – Clean signal with good waveform
Specifications
- Operating Voltage: 3.3V–5V
- Detection Wavelength: 760nm–1100nm
- Detection Angle: ~60°
- Detection Distance: Up to 80cm (lighter flame)
- Output Types: D0 (digital 0/1), A0 (analog voltage)
- PCB Size: 32×14mm
- Mounting: Bolt holes included
Ideal For
- Fire detection and alarm systems
- Safety monitoring projects
- Arduino and microcontroller projects
- Robotics flame avoidance
Package Contents
- 1× IR Flame Sensor Module
