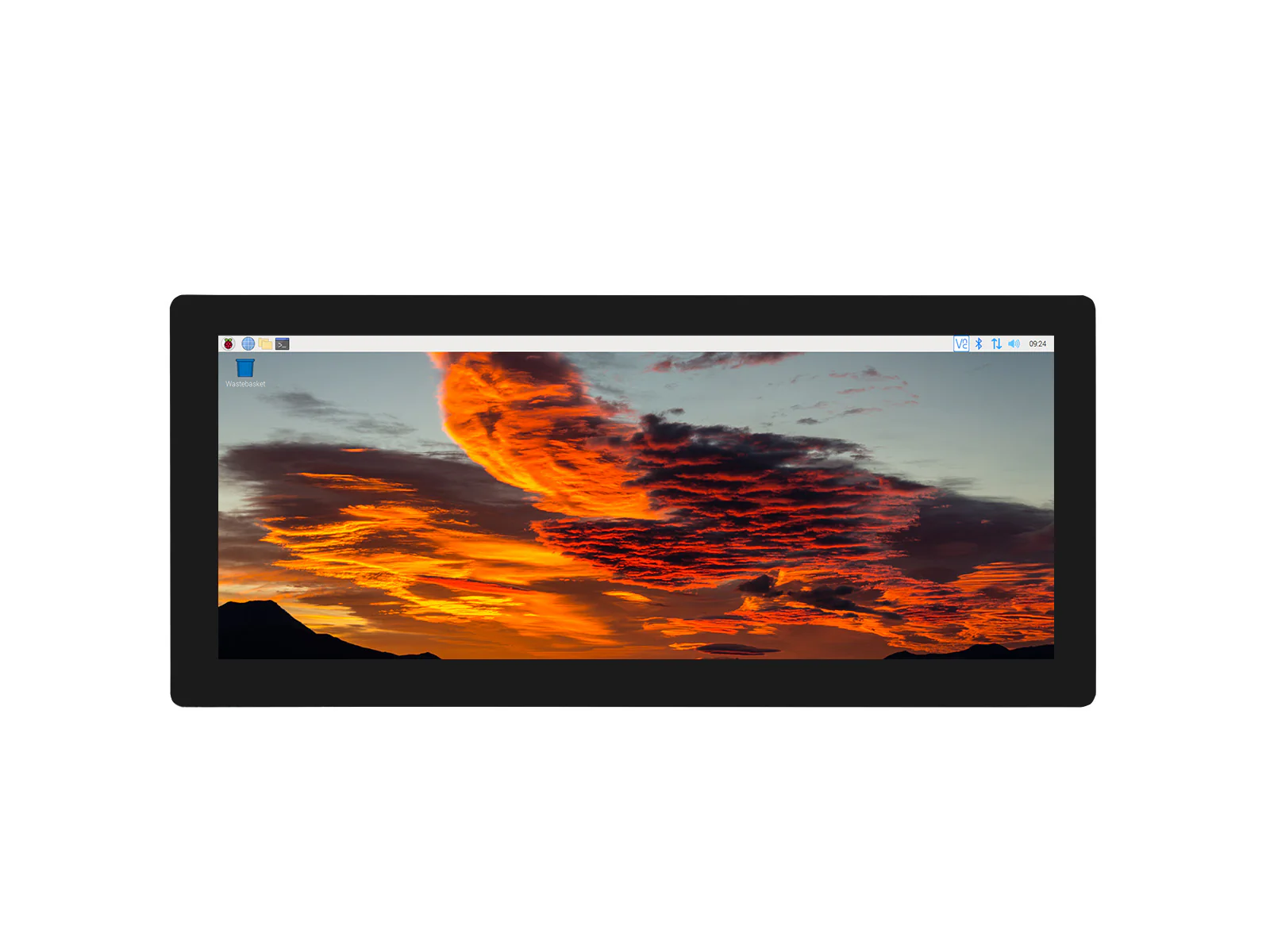

A wide-format 12.3" IPS touchscreen with 1920×720 resolution, ideal for dashboard displays, automotive projects, and panoramic interfaces. Features 10-point capacitive touch with optically bonded 6H toughened glass for durability and enhanced visibility.

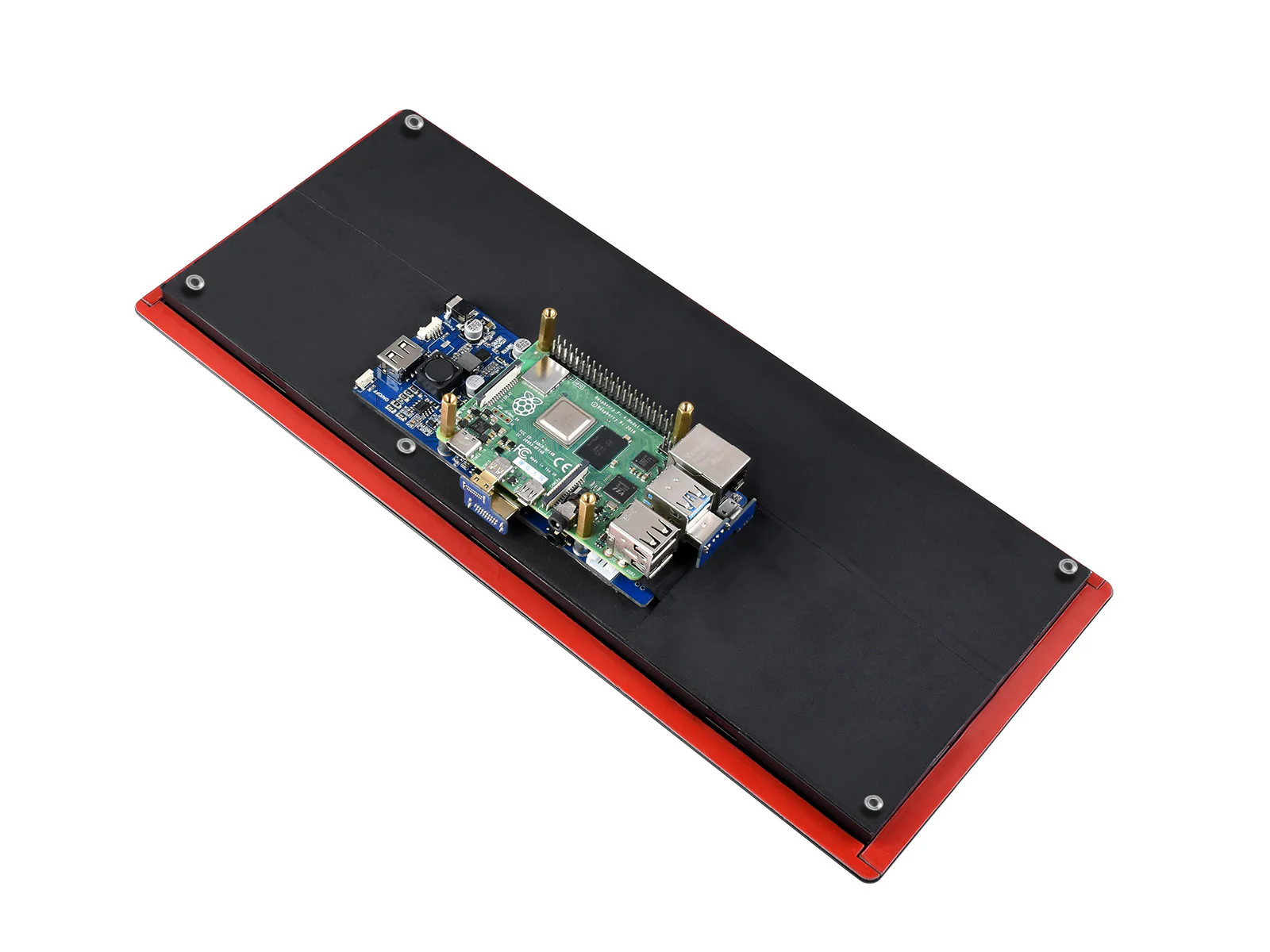

The high-brightness 600 cd/m² panel remains clearly visible even in well-lit environments. Works plug-and-play with Raspberry Pi, Jetson Nano, and Windows PCs via HDMI connection with USB touch interface.

Key Features

• Wide Format Display – 1920×720 resolution perfect for dashboard-style interfaces
• High Brightness – 600 cd/m² for visibility in bright conditions
• 10-Point Capacitive Touch – Responsive multi-touch with 6H hardness glass
• Optical Bonding – Enhanced contrast and dustproof seal
• IPS Panel – 178° viewing angles with vivid colour reproduction
• Wide Temperature Range – Operates from -20°C to 70°C
• Dual Audio Output – 3.5mm jack and 24-pin header
• OSD Controls – Adjust brightness and contrast settings

Compatibility

• Raspberry Pi: All models – Raspberry Pi OS (driver-free)
• Jetson: Nano, TX2, Xavier NX, Orin series
• Operating Systems: Ubuntu, Kali, WIN10 IoT, Retropie
• Windows PC: Plug and play

Ideal For

• Car infotainment and dashboard displays
• Industrial HMI panels
• Wide-format kiosks
• Panoramic status displays

Specifications

• Screen Size: 12.3" diagonal
• Resolution: 1920×720
• Panel Type: IPS
• Brightness: 600 cd/m²
• Viewing Angle: 178°
• Touch: 10-point capacitive
• Touch Panel: 6H toughened glass, optically bonded
• Video Input: HDMI
• Touch Interface: USB
• Audio Output: 3.5mm jack, 24-pin header
• Operating Temperature: -20°C to 70°C
• Weight: 1.223 kg

Package Contents

• 1× 12.3" HDMI LCD
• 1× HDMI cable
• 1× USB-A to Micro-B cable
• 1× HDMI and USB adapters
• 1× Button board for OSD
• 1× 12V 3A power adapter - US PLUG
• 1× Screw pack



You can purchase an Australian Power supply here
