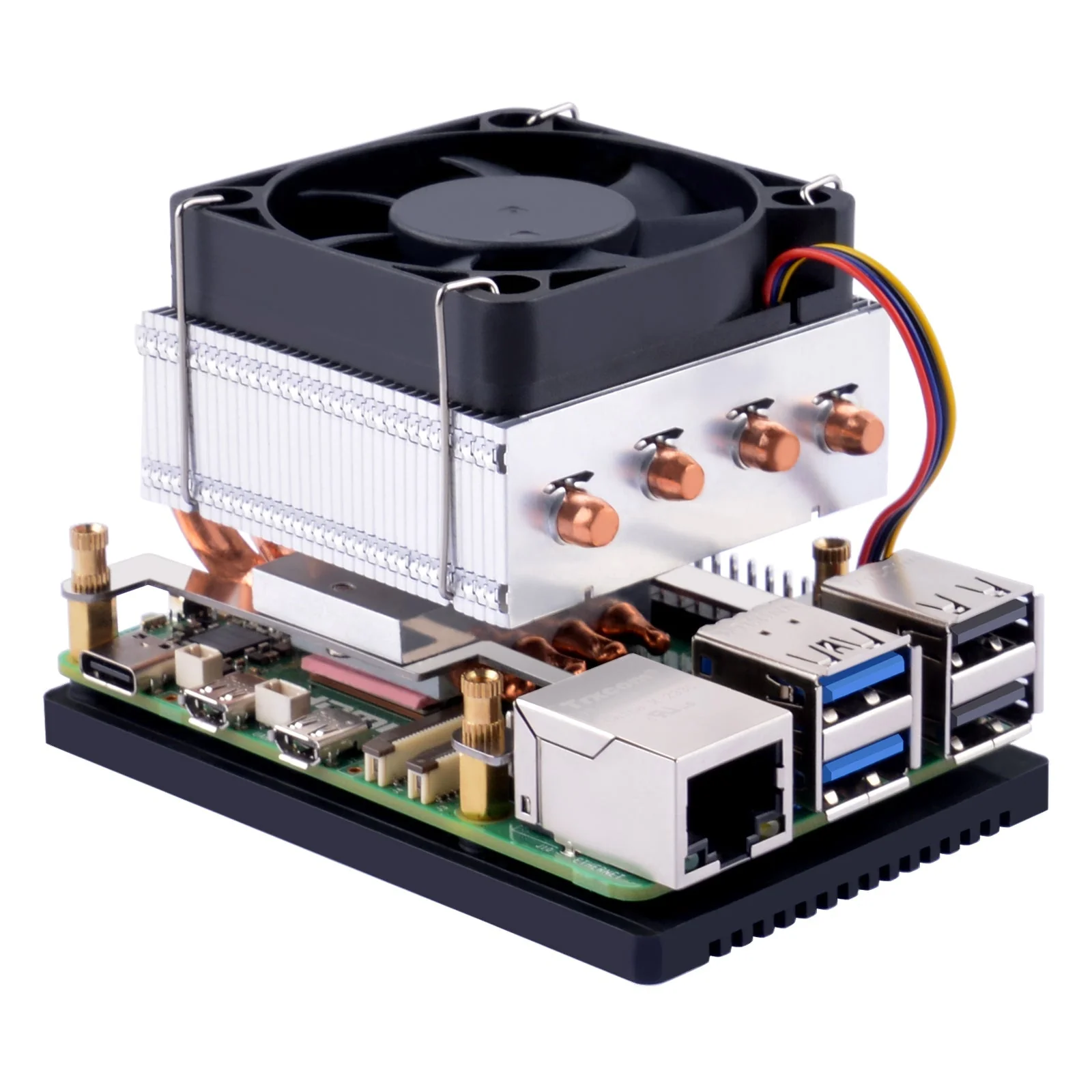

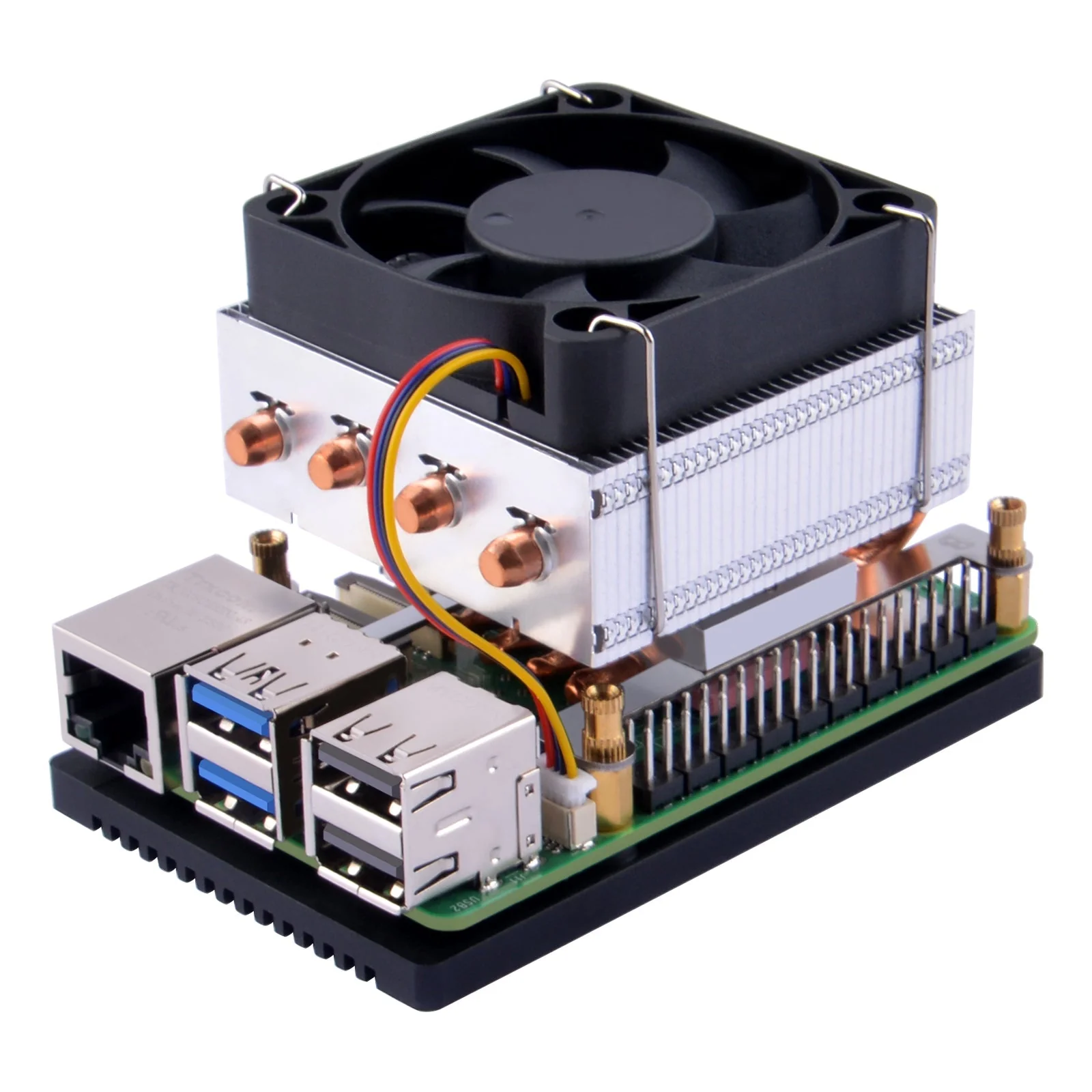

A low-profile version of 52Pi's ICE Tower Plus Cooler designed specifically for Raspberry Pi 5. Features the same mammoth heatsink design and exceptional cooling performance, but with a top-mounted fan and angled heatsink section for a more compact profile.

Four 5mm copper heat pipes transfer heat from the aluminium CPU block to the finned heatsink section, where a PWM fan efficiently draws heat away. Includes a solid metal base plate with thermal pad for additional cooling from the underside of your Pi 5.

Key Features

Quad Copper Heat Pipes – Four 5mm pipes for efficient heat transfer
PWM Fan Control – Native Pi 5 fan connector (4-pin JST)
Low-Profile Design – Compact form with top-mounted fan
Metal Base Plate – Draws heat from underside of Pi 5
Full Thermal Pad Set – CPU, RAM, and base pads included
Easy Installation – Tools included

Specifications

Compatibility: Raspberry Pi 5
Heat Pipes: 4× 5mm copper
Fan Connector: 4-pin JST (Pi 5 native)
Fan Control: PWM via Raspberry Pi OS kernel

Package Contents

1× Low-profile ICE Tower Plus Cooler
1× Metal bottom base
1× Thermal pad set (CPU, RAM, and base pads)
1× Fixings and standoffs set
1× Mini screwdriver
1× Hex key

Tip: The fan won't spin until your Raspberry Pi 5 reaches 60°C, then gradually increases speed with temperature. This is controlled by Raspberry Pi OS.

Note: Raspberry Pi 5 not included.
